Electric PVC Air Blowing Injection Machine , RoHS Plastic Injection Molding Equipment

Electric PVC Air Blowing Injection Machine , RoHS Plastic Injection Molding Equipment

  • High Light

    PVC Air Blowing Injection Machine

    ,

    Plastic PVC Air Blowing Injection Machine

    ,

    RoHS Plastic Injection Molding Equipment

  • Certification
    GS, RoHS, CE, ISO9001
  • Supply Ability
    15000 Pair /12 Hours
  • Model NO.
    KK-SP01
  • Transport Package
    Standard Exported Packing
  • Specification
    6.2*3.53*2.3
  • Trademark
    KINGKUNG
  • Origin
    China
  • HS Code
    8504101000
  • Condition
    New
  • Power Supply
    Electric
  • Applicable Material
    PVC Airblowing
  • Function
    Shoemaking Line
  • Stations
    Any Stations Are Available
  • Customization
    Available | Customized Request

Electric PVC Air Blowing Injection Machine , RoHS Plastic Injection Molding Equipment

Product Description

Company Info.

Basic Info.

Model NO.
KK-SP01
Transport Package
Standard Exported Packing
Specification
6.2*3.53*2.3
Trademark
KINGKUNG
Origin
China
HS Code
8504101000
Production Capacity
15000 Pair /12 Hours

Product Description

Single color PVC air blowing machine / PCU machine
for shoes making

1.All the main parts are imported high quality products;
2.Good service.Engineers available to service machinery overseas

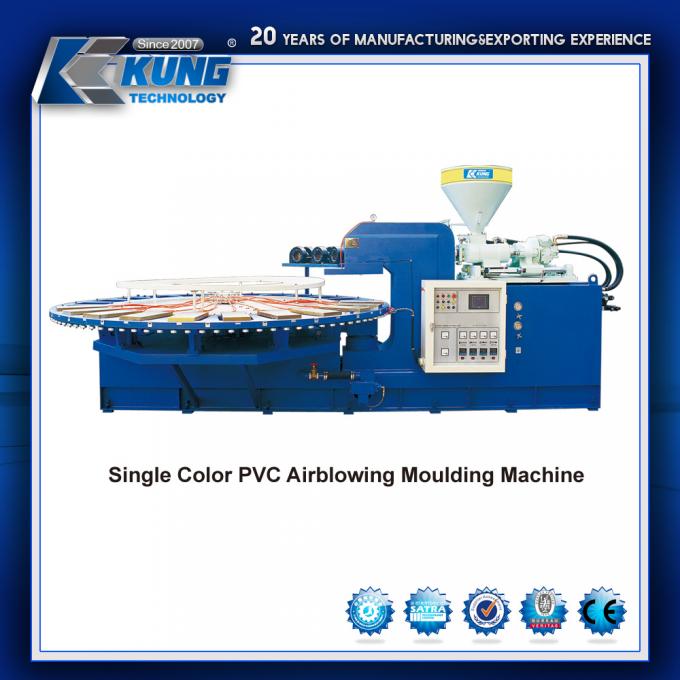

Machine Pic :
Single Color PVC Air Blowing Machine / Pcu Machine for Shoes Making
Specification :
Item Unit Specification
Number of work station Stations 24
Screw length diameter ratio L/D 150-220
Screw Diameter mm 60
Max injection volume cm³ 785
Max injection pressure Kg/cm² 140
Mold Clamping Force Tons 70
Mould space(L*W*H) mm 400*280*230
Motor kw/hp 18.5/25
Auto thermo controller Sets 4
Heating bands power Kw 9.18
Total electric consumption Kw 26.86
Mould space(L*W*H) m 6.2*3.53*2.3
Machine Weight Tons 8.8

We are specialized in one-stop solution for shoes making machinery , mould , material , accessories and so on !



If any new inquiry, pls feel free contact with us, we will reply you asap! Thank you!
