Durable Antiwear PVC Air Blowing Machine , PCU Shoe Sole Molding Machine

Durable Antiwear PVC Air Blowing Machine , PCU Shoe Sole Molding Machine

  • High Light

    Durable PVC Air Blowing Machine

    ,

    Antiwear PVC Air Blowing Machine

    ,

    PCU Shoe Sole Molding Machine

  • Certification
    GS, RoHS, CE, ISO9001
  • Supply Ability
    15000 Pair /12 Hours
  • Model NO.
    KK-TP03
  • Transport Package
    Standard Exported Packing
  • Specification
    8900*7000*2750
  • Trademark
    KINGKUNG
  • Origin
    China
  • HS Code
    8504101000
  • Condition
    New
  • Power Supply
    Electric
  • Applicable Material
    PVC Airblowing
  • Function
    Shoemaking Line
  • Stations
    Any Stations Are Available
  • Customization
    Available | Customized Request

Durable Antiwear PVC Air Blowing Machine , PCU Shoe Sole Molding Machine



Three colors PVC airblowing machine / PCU machine
for shoes making


1.All the main parts are imported high quality products;
2.Good service.Engineers available to service machinery overseas


Machine Pic :

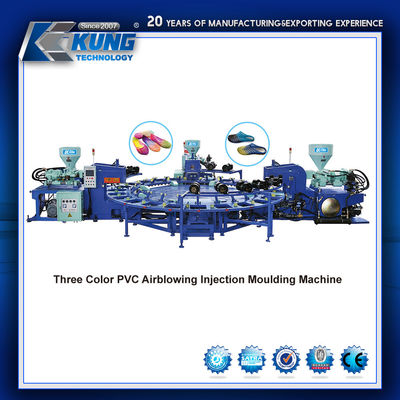

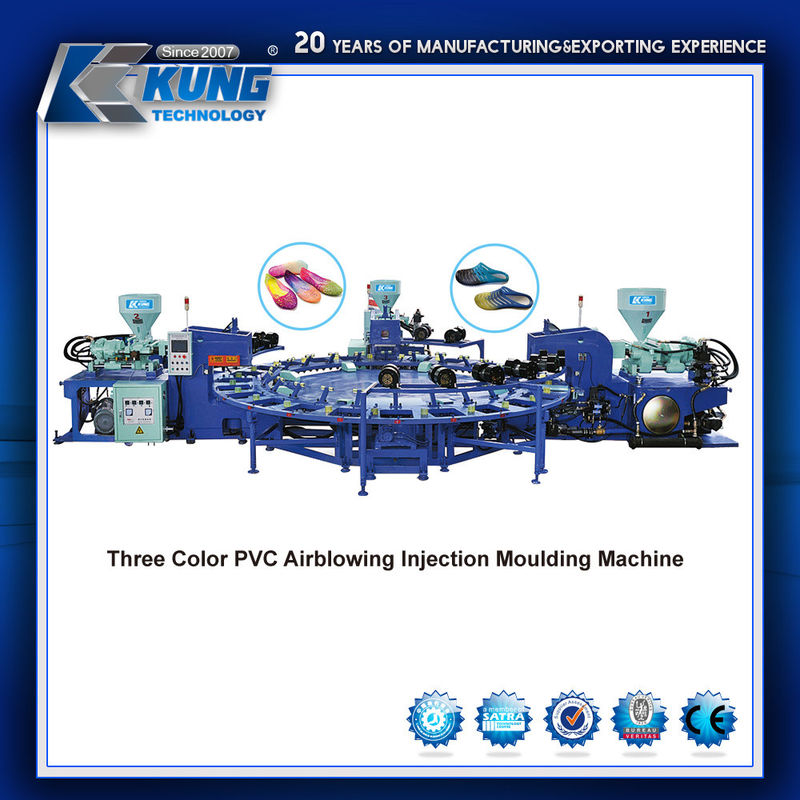

Three Colors PVC Airblowing Machine/Pcu Machine for Shoes Making
Specification :



Item Unit Specification
    Raw material     PVC TPR
Heating bands power Kw 28
Temperature contorl section point 4
Diameter of screw Cm3 Φ65;Φ55*2
Max injection volume mm 780;565
Screw length diameter ratio cm³ 0-200
Rated injection stroke      R.P.M 85;75
Maximum injection stroke mm 200
Motor power Kw 18.5;15
Clamping force Kn 80T
Mould space(L*W*H) mm 460*220*380
Machine dimension mm 8900*7000*2750
gross Weight kg 15000

We are specialized in one-stop solution for shoes making machinery, mould , material , accessories and so on !


If any new inquiry, pls feel free contact with us, we will reply you asap! Thank you!
