Horizontal PVC Plastic Sole Injection Molding Machine Screw Type 24 Stations

Horizontal PVC Plastic Sole Injection Molding Machine Screw Type 24 Stations

  • High Light

    Horizontal Plastic Sole Injection Molding Machine

    ,

    Screw Plastic Sole Injection Molding Machine

    ,

    24 Stations PVC Injection Moulding Machine

  • Computerized
    Computerized
  • Trademark
    KINGKUNG
  • Origin
    Jinjiang
  • Type
    Injection Blow Molding
  • Structure
    Horizontal
  • Plastic Type
    Thermoplastic
  • Plasticizing Way
    Screw Type
  • Clamping Way
    Hydraulic
  • Automation
    Non-Automatic
  • Customization
    Available | Customized Request

Horizontal PVC Plastic Sole Injection Molding Machine Screw Type 24 Stations

Automatic 24 stations PVC dip machine With a extra screw and barrel



Product Description



Techinical parameter



Item Unit Specification
Color   Single
Number of station Pcs 20
Screw diameter mm 75
Screw rotating speed r/min 0-160
Screw length and diameter ratio   18:1
Max injection capacity Cm3 580
Plastifying capacity g/s 40
Sliding platform travel Mpa 5.0
Travel for lifting the cramp Mpa 3.0
Clamping way   scissors
Mention last trip mm 60
shoe cramp height mm 210-260
Mould frame dimensions(LxWxH) mm 340x180x60
Total power of the whole machine kw 20.5
Outline dimensions of the whole machine (LxWxH) mm 6135x3310x1955
Total weight of the whole machine kg 11800

Our Services



1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.

4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.

5. We can offer many newly styles for you reference.

6. We also can offer the raw material for you according to your request.



Packaging & Shipping

1.International standard package

2.30 days after receiving 30% deposit


Company Information



This is KingKung Group Co.,Ltd., falling in line with shoes, shoe accessories, shoe mould, shoe material, and machinery.We introduce and offer the newest style and good quality products to our customers.Keeping serious quality control before
shipment.We offer good after-sales service, once you received the product, if there are any problems, inform us,and we are sure we can deal with that perfectly.

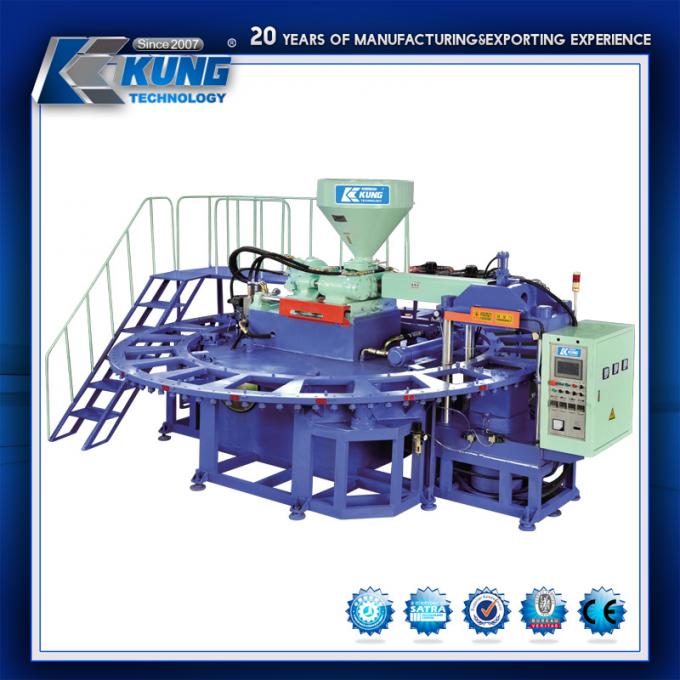

 Machine pic
24 Stations Single Color PVC Injection Moulding Machine
