Double Color PVC Plastic Sole Injection Molding Machine Automatic Rotary

Double Color PVC Plastic Sole Injection Molding Machine Automatic Rotary

  • High Light

    PVC Plastic Sole Injection Molding Machine

    ,

    Automatic Plastic Sole Injection Molding Machine

  • Certification
    GS, CE
  • Supply Ability
    50sets/Month
  • Model NO.
    KK-02
  • Origin
    China
  • HS Code
    84532
  • Condition
    New
  • Applicable Material
    PVC
  • Transport Package
    International Standard Package
  • Specification
    6290x6150x1955
  • Trademark
    KINGKUNG
  • Customization
    Available | Customized Request

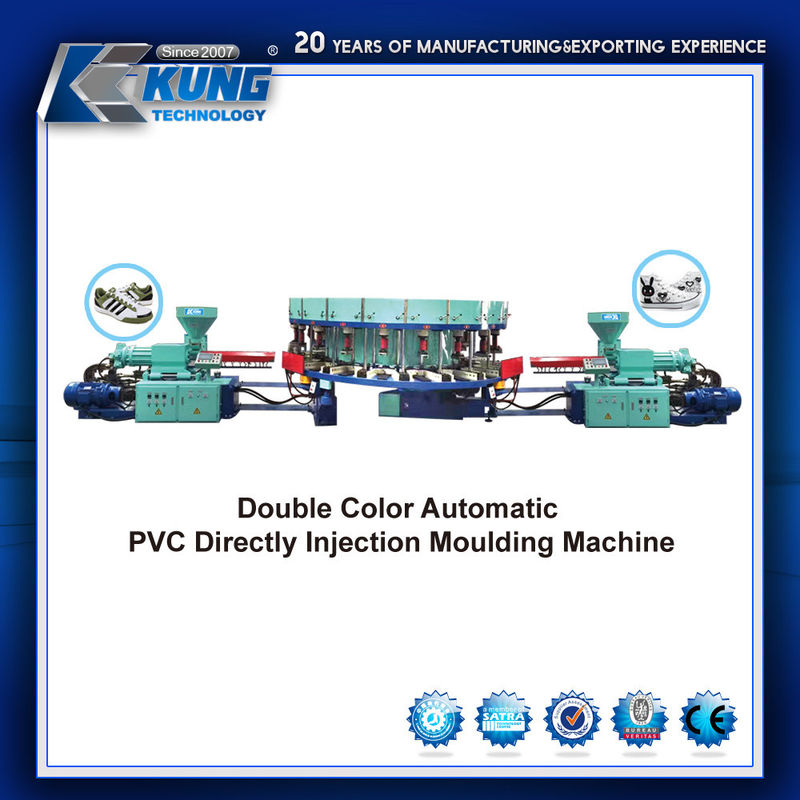

Double Color PVC Plastic Sole Injection Molding Machine Automatic Rotary

Double Color PVC Automatic Rotary Shoe Direct Injection Moulding Machine

Double Color PVC Automatic Rotary Shoe Direct Injection Moulding Machine

Product Description

Double color PVC dip injection machine

Item Unit Specification
Color   Double
Number of station Pcs 20
Screw diameter mm 75
Screw rotating speed r/min 0-160
Screw length and diameter ratio   18:1
Max injection capacity Cm3 580
Plastifying capacity g/s 40
Sliding platform travel Mpa 5.0
Travel for lifting the cramp Mpa 3.0
Clamping way   scissors
Mention last trip mm 60
Shoe cramp height mm 21-260
Mould frame dimensions(LxWxH) mm 340x180x60
Total power of the whole machine kw 35.5
Outline dimensions of the whole machine (LxWxH) mm 6290x6150x1955
Total weight of the whole machine kg 14500

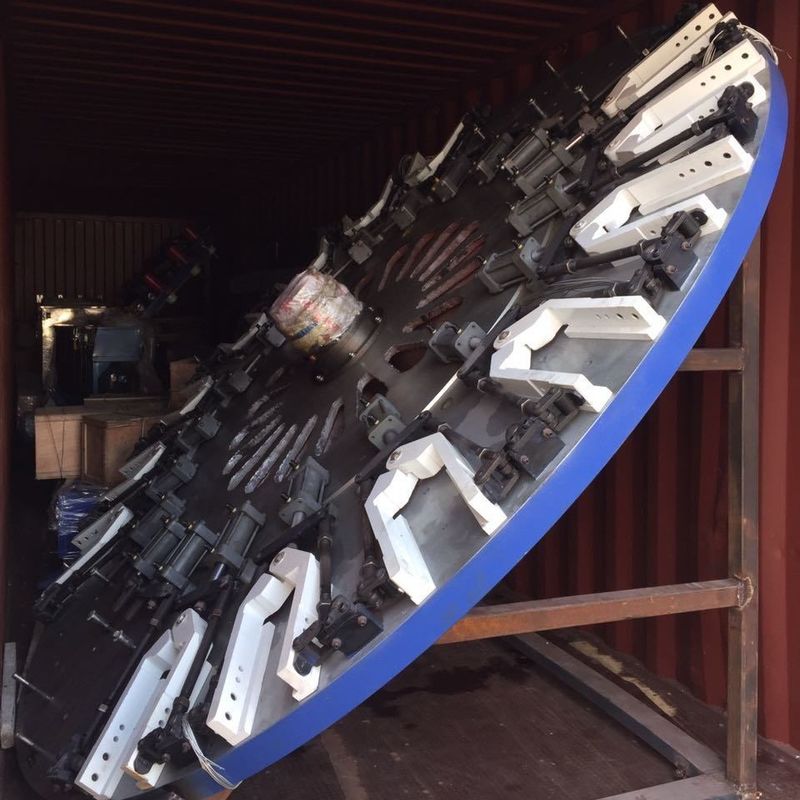

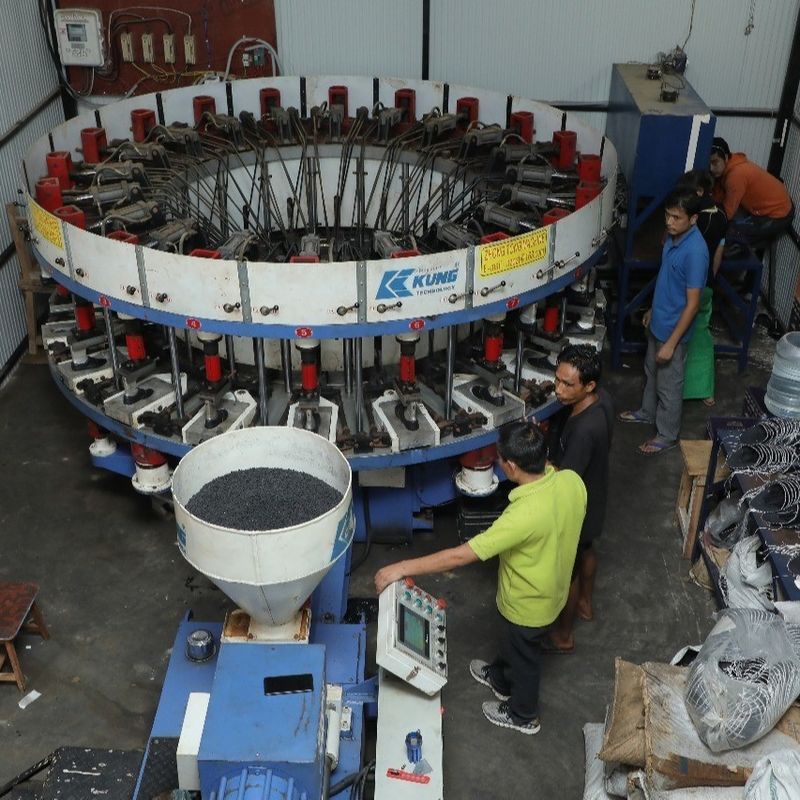

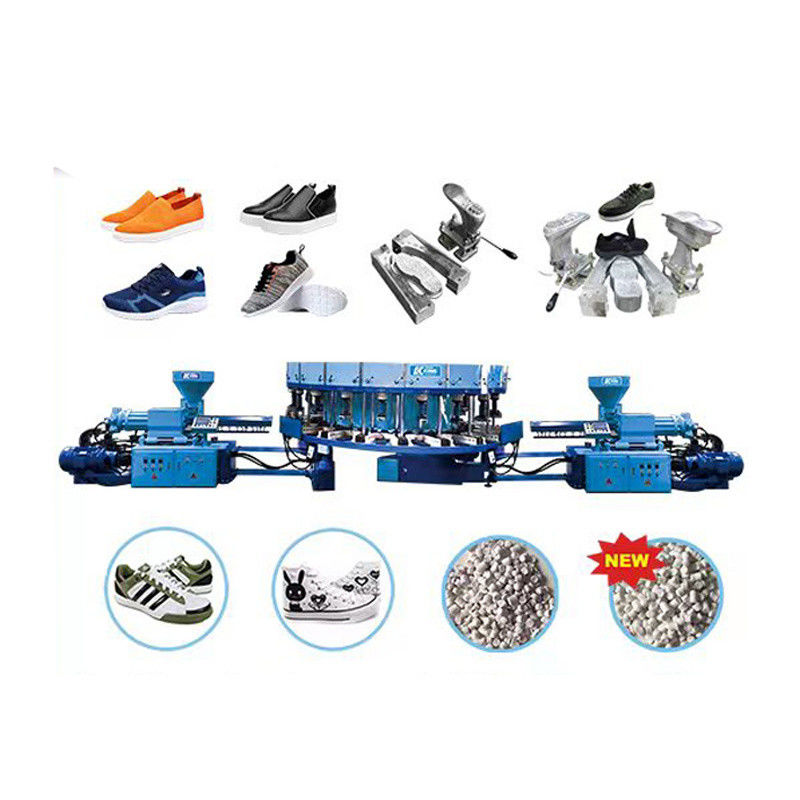

Machine pic:
Double Color PVC Automatic Rotary Shoe Direct Injection Moulding Machine

Our Services

1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.
4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.
5. We can offer many newly styles for you reference.
6. We also can offer the raw material for you according to your request.

This is KingKung Group Co.,Ltd., falling in line with shoes, shoe accessories, shoe mould, shoe material,  and machinery.We introduce and offer the newest style and good quality products to our customers.Keeping serious quality control before
shipment.We offer good after-sales service, once you received the product, if there are any problems, inform us,and we are sure we can deal with that perfectly.
