40–60 kg/h Plastic Recycling Pelletizing Machine for PE, HDPE, LDPE, LLDPE, PVC, and ABS
-
Highlight
40-60 kg/h plastic pelletizing machine
,PE HDPE LDPE pelletizing machine
,PVC ABS plastic recycling machine
-
Total Power26 KW(Main Motor 15 KW + Barrel Heating 8 KW + Screen Changer Heating 2 KW + Cutter Motor 0.75 KW + Cooling Fan 0.5 KW)
-
Power Supply380 V, 3-phase, 50 Hz
-
Operating Current30A
-
Equipment Weight0.78T
-
Footprint3 M²
-
Screw And Barrel75 Mm, 38CrMoAlA Nitrided Steel
-
Place of OriginCHINA
-
Brand NameKINGKUNG
-
Model NumberKK-J
-
Minimum Order Quantity1SET
-
Price7500.00USD/SET
-
Delivery Time35days
-
Payment TermsL/C,T/T
40–60 kg/h Plastic Recycling Pelletizing Machine for PE, HDPE, LDPE, LLDPE, PVC, and ABS
40–60 kg/h Plastic Recycling Pelletizing Machine for PE, HDPE, LDPE, LLDPE, PVC, and ABS
Product Overview

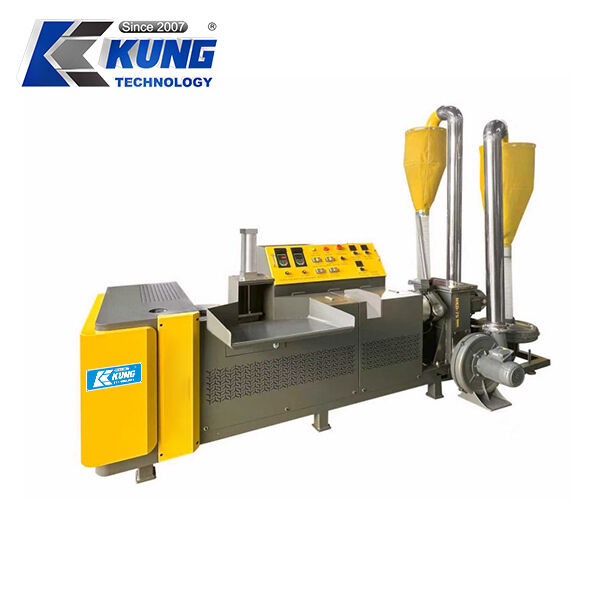

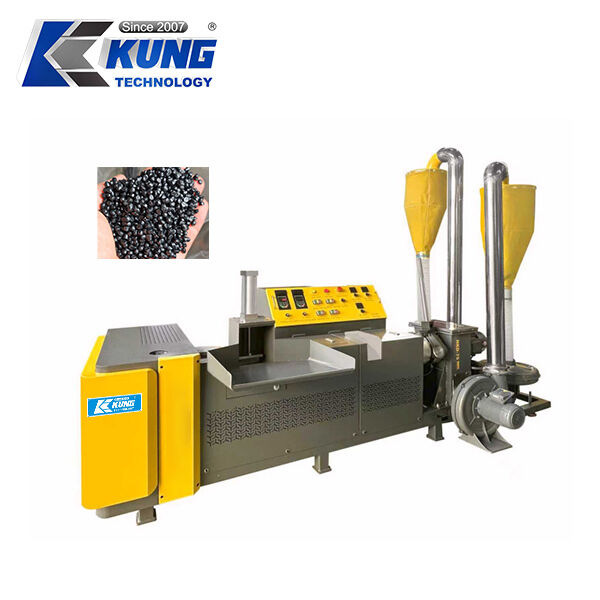

Designed for recycling and pelletizing various plastic materials, this machine uses an air-cooled hot-cut pelletizing system. The process includes plasticizing and extrusion, die-face hot cutting, air conveying and cooling, cyclone separation, and finished pellet collection.
Key Features
- Applicable Materials: PE, HDPE, LDPE, LLDPE, PVC, ABS
- Designed Output: 40-60 kg/h, depending on material and processing conditions
- Pelletizing Method: Die-face hot cutting
- Main Motor: 15 kW, 6-pole, variable-frequency speed control
- Gearbox: 146-V type hardened gear reducer
- Barrel Heating: 8 kW ceramic heating rings with 2-zone temperature control
- Screen Changer: 75-type manual dual-position screen changer with 2 kW heating
- Cutting Motor: 0.75 kW, 6-pole, variable-frequency speed control
- Cutting Blades: K3 high-speed tool steel
- Pellet Size: Approx. 3-5 mm thickness * 5-7 mm diameter
- Cooling & Conveying: Air conveying and cooling system with 2 * 250 W cooling fans
- Cyclone Separator: Stainless steel, for air-material separation and pellet cooling
- Feeding: Hopper feeding with manual loading
- Control Cabinet: Independent electrical control cabinet with integrated control system
Electrical Components
| Component | Specification |
|---|---|
| Inverter | Senlan, 15 kW for main extruder + 0.75 kW for pellet cutter |
| Temperature Controller | Yudian |
| Solid State Relay | Yangming |
| Electrical Components | Delixi contactors, circuit breakers and thermal overload protection |
Main Consumables
- 80-mesh filter screens for the 75-type manual screen changer
- K3 high-speed tool steel hot-cutting blades
Application
Suitable for recycling and pelletizing waste PE and other thermoplastic materials into reusable plastic pellets for further production.
