Multicolor PVC Shoe Molding Machine Injection Molding Practical 11KW

Multicolor PVC Shoe Molding Machine Injection Molding Practical 11KW

  • High Light

    Multicolor Shoe Molding Machine

    ,

    PVC Shoe Molding Machine

    ,

    11KW PVC Injection Molding Shoe Machine

  • Condition
    New
  • Style
    Rotary
  • Ejector Stroke(mm)
    0 Mm
  • Ejector Force(kN)
    0 KN
  • Theoretical Shot Volume(cm³)
    600 Cm³
  • Injection Rate (g/s)
    80 G/s
  • Machine Type
    Electric
  • Injection Weight (g)
    0 G
  • Screw Diameter (mm)
    65 Mm
  • Weight (KG)
    8500
  • Type
    One Time Injection
  • Open Stroke(mm)
    0 Mm
  • Power (kW)
    11 KW
  • Warranty
    1 Year
  • Key Selling Points
    Automatic
  • Applicable Industries
    Manufacturing Plant, Other
  • Showroom Location
    None
  • Machinery Test Report
    Not Available
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    Other
  • Core Components
    PLC
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Online Support
  • Plastic Type
    Thermoplastic
  • Automatic
    Yes
  • Clamping Force (kN)
    Other
  • After Warranty Service
    Online Support
  • Local Service Location
    None
  • Marketing Type
    Ordinary Product
  • Port
    Xiamen
  • Place of Origin
    Fujian, China
  • Brand Name
    KINGKUNG
  • Certification
    CE
  • Model Number
    KK-CH6120A
  • Price
    $30,000.00 - $32,000.00/sets
  • Packaging Details
    Standard export packing
  • Supply Ability
    20 Set/Sets per Month

Multicolor PVC Shoe Molding Machine Injection Molding Practical 11KW

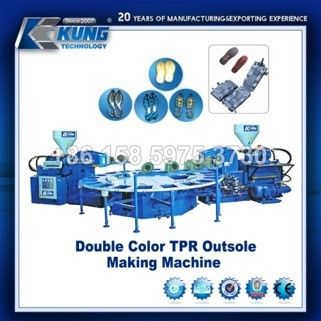

Double colour PVC sole Injection Moulding Machine





1. Station: 12,16, 20,24,30

2.Engineers available to service machinery overseas

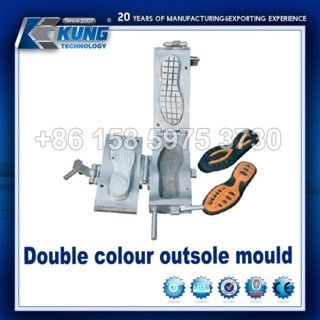

3. We also specialized in making all kinds shoe and sole moulds, such as the PVC/TPR/TR, rubber, PU, EVA and so on shoe and sole moulds. We also specialized in exporting PVC material, EVA material,  shoe buckles, shoe flowers and so on shoe material and accesories.



 If any new inquiry, pls let us know, we will reply you asap! Thank you very much!










 Multicolor PVC Shoe Molding Machine Injection Molding Practical 11KW 0          Multicolor PVC Shoe Molding Machine Injection Molding Practical 11KW 1

Features:

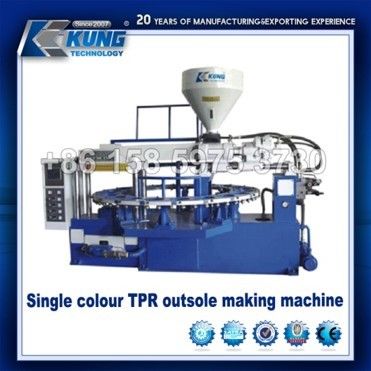

  1. This machine is used for making single color, double color PVC,TPR soles.
  2. Specially designed screw specially suitable for produce kinds of PVC crystal solelace, the product transparency is good like glass, has no shrink or other bad phenomenon.
  3. Adopt PLC system, all the working data can be save in the PVC memory and show in the touch screen. It inspect the working state of it’s some parts all the time and show the result on the screen.
  4. the reasonable material value in on shoot, The largest feature is saving power.The cost cn be reduced by largedegree.
  5. Improve the hydraulic system, the action is more credible, speedy.
  6. All electric box are fixed on the support. It’s more convenient when transit and install. The connect line is more simple, so the trouble is less.



                                      Main technicial data



Item

Unit

KK—2512

Work station

Station

12,16,20

Productivity

Pair/hour

150-250

Screw diameter

mm

50,60

Screw lenth diameter ratio

L/D

18:1

Max injection volume

cm3

565/300

Max injection pressure

kg/cm2

105,95

Mould space(H)

mm

210

Motor

kw

22

Heating power

kw

11.20

Machine dimension

m

7.5×3.05×1.80

Weight

ton

8.50
