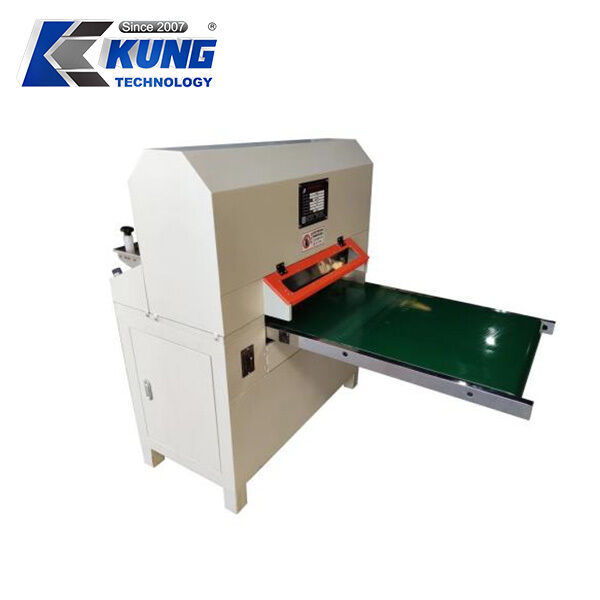

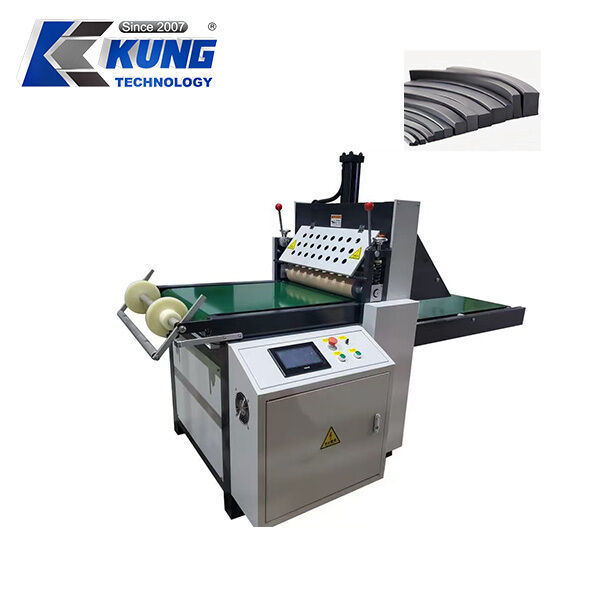

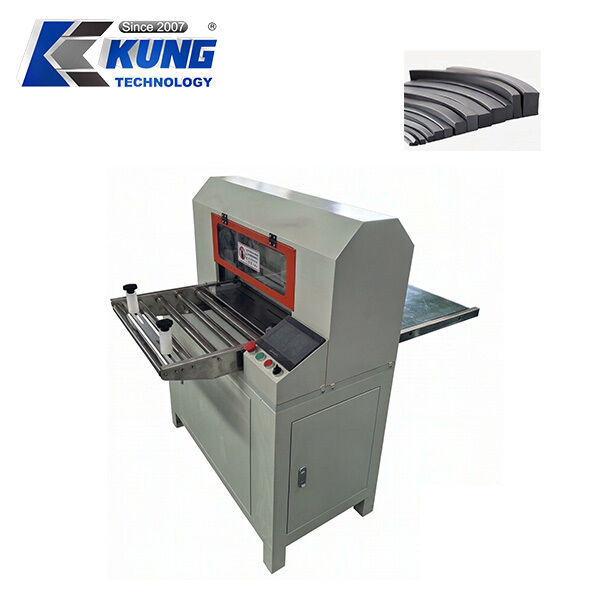

High Efficiency CNC Strip Cutting Machine with 600mm Max Cutting Width and Brake Braking System at 120 Cuts Per Minute
-
Highlight
600mm Max Cutting Width CNC Strip Cutting Machine
,Brake Braking System CNC Cutting Machine
,120 Cuts Per Minute Strip Cutting Machine
-
Product NameCNC Strip Cutting Machine
-
ModelHigh Efficiency CNC Type With Brake System
-
Overall Dimension160010001300mm
-
Max Cutting Width600mm
-
Cutting Motor Power1.5KW
-
Place of Originchina
-
Brand NameKingKung Technology
-
Certificationce
-
Model Numberkk-J
-
Minimum Order Quantity1
-
PriceUSD 3850 /set
-
Packaging Detailsbox
-
Delivery Time5-8 work day
-
Payment TermsL/C,T/T
-
Supply Ability20 Sets per Month
High Efficiency CNC Strip Cutting Machine with 600mm Max Cutting Width and Brake Braking System at 120 Cuts Per Minute
This high-efficiency CNC strip cutting machine features a brake braking system, specifically engineered for cutting leather, EVA, and various shoe roll materials. With a maximum cutting width of 600mm and cutting speed up to 120 cuts per minute, it significantly enhances production efficiency for shoe manufacturing facilities.
- Taiwan Tianji brake reducer ensures precise cutter positioning
- Pneumatic roller lifting for easy material loading and adjustment
- Inlaid steel blades provide sharp cutting edges and long service life
- Neat cutting edges without burrs
- CNC touch screen control for simple cutting length and quantity settings
- Automatic feeding and discharging design reduces labor costs
- Stable operation with low failure rate
| Specification | Details |
|---|---|
| Product Name | CNC Strip Cutting Machine |
| Model | High Efficiency CNC Type with Brake System |
| Overall Dimension | 1600 × 1000 × 1300mm |
| Max Cutting Width | 600mm |
| Cutting Motor Power | 1.5KW |
| Feeding Conveyor Power | 0.75KW |
| Discharging Conveyor Power | 0.12KW |
| Total Weight | 450KG |
| Cutting Speed | 120 cuts per minute |
| Roller Lifting Method | Pneumatic lifting |
| Blade | Inlaid steel blade |
| Reducer | Taiwan Tianji brake reducer, cutter stops at fixed position |
| Control System | CNC / PLC Touch Screen |
Applications: Leather, EVA, shoe materials, roll materials cutting
Key Features: Brake braking system, high precision, stable operation
Warranty: 1 Year
Type: New
Ideal for footwear industry and leather goods factories requiring precise strip cutting for shoe accessories. This machine represents optimal equipment for shoe material processing enterprises seeking enhanced productivity and reliability.
