Shoe Making Machines Using UV Light to Activate Footwear Material Surfaces and Enhance Bonding Strength in Production Processes
-
Highlight
UV light shoe making machines
,footwear material bonding machines
,shoe production UV activation machines
-
Speed4-6/min
-
Control SystemPLC / Touch Screen
-
Voltage220V / 380V / Customizable
-
Pressure6kg/cm2
-
Warranty1 Year
-
ApplicationShoe Making Industry,shoes / Sole / Insole / Shoes Pad
-
Place of OriginCHINA
-
Brand NameKINGKUNG
-
Model NumberKK-J
-
Minimum Order Quantity1
-
Price5,500.00USD/SET
-
Delivery Time35-45days
-
Payment TermsL/C,T/T

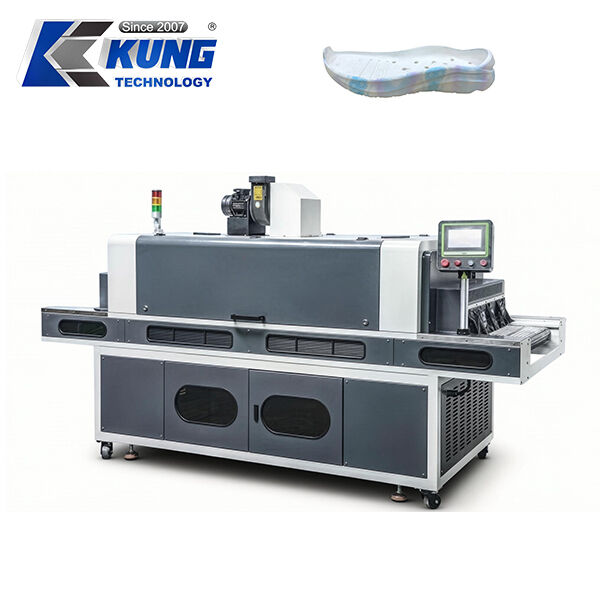

Shoe Making Machines Using UV Light to Activate Footwear Material Surfaces and Enhance Bonding Strength in Production Processes
Low Temperature UV Ultraviolet Irradiation Machine for Footwear Materials
Specially designed for surface treatment of footwear materials including EVA, rubber, TPU, PU, PVC, and synthetic leather. This cold UV light irradiation technology activates and improves surface adhesion, enhancing bonding performance in footwear production.
Product Features
Energy Saving & High Efficiency
- Equipped with 15 pcs * 300W cold light UV lamps
- Total power consumption approximately 5.17KW
- Lower energy consumption compared with traditional UV systems
- Suitable for continuous mass production
Low Temperature Processing
- Cold UV irradiation technology reduces heat generation
- After normal irradiation, the sole surface temperature is only around 40-45°C
- Prevents material deformation and damage caused by high temperature
Improve Adhesion Performance
- Activates the surface of EVA, rubber, TPU, PU and other materials
- Enhances bonding strength between materials and adhesives
- Reduces glue failure problems during shoe production
Long Lamp Life & Easy Maintenance
- UV lamp lifetime: approximately 6,000-8,000 hours
- Recommended replacement period: about every 2 years
- Stable performance and low maintenance cost
Technical Specifications
| Item | Specification |
|---|---|
| Model | QX-UV528A / QX-UV528B |
| Machine Type | Single Side Cold UV Irradiation Machine |
| Application | Shoe Sole / Shoe Material Surface Treatment |
| Machine Size (A) | 2900 * 1020 * 1650 mm |
| Machine Size (B) | 3200 * 1020 * 1800 mm |
| Net Weight (A) | 750 kg |
| Net Weight (B) | 950 kg |
| Power (A) | 5.5 KW |
| Power (B) | 9.5 KW |
| Working Size | 500 cm |
| Speed | 4-6 m/min |
| Pressure | 6 kg/cm² |
| Voltage | 380V 3 Phase 50Hz |
| Control System | PLC + Touch Screen |
Applications
- EVA Shoe Soles
- Rubber Soles
- TPU Materials
- PU Soles
- PVC Footwear Materials
- Synthetic Leather
- Shoe Upper Materials
- Industrial Footwear Production
Advantages
Low temperature treatment
Energy saving design
Improves glue adhesion
Increases production efficiency
Protects material surface
Suitable for automatic footwear production lines
Stable and reliable operation
