Leather Embossing Machine

Get Price Contact Now

Leather Embossing Machine 0

Type	Working Pressure	Motor	Working Area	Electrothermal Treatment	Machine Dimensions	Weight
(Model)-03	120 Tons	4 HP	500×600 mm	0–150 ℃	1290×920×1520 mm	1350 kg
(Model)-03	130 Tons	4 HP	500×600 mm	0–150 ℃	1290×920×1520 mm	1400 kg
(Model)-03	180 Tons	4 HP	500×600 mm	0–150 ℃	1300×920×1540 mm	1500 kg
(Model)-03	180 Tons	4 HP	600×700 mm	0–150 ℃	—	1700 kg
(Model)-03	250 Tons	5 HP	600×750 mm	0–150 ℃	—	2150 kg

Leather Embossing Machine 1

Type	Working Pressure	Motor	Working Area	Electrothermal Treatment	Machine Dimensions	Weight
(Model)-03	20 Tons	2 HP	300×350 mm	0–150 ℃	—	400 kg
(Model)-03	30 Tons	2 HP	300×350 mm	0–150 ℃	850×840×1350 mm	450 kg
(Model)-03	40 Tons	2 HP	335×350 mm	0–150 ℃	890×840×1330 mm	550 kg
(Model)-03	50 Tons	3 HP	335×350 mm	0–150 ℃	890×840×1330 mm	580 kg
(Model)-03	80 Tons	3 HP	380×380 mm	0–150 ℃	980×930×1420 mm	720 kg
(Model)-03	100 Tons	4 HP	420×420 mm	0–150 ℃	980×970×1420 mm	780 kg
(Model)-03	120 Tons	4 HP	380×380 mm	0–150 ℃	980×930×1420 mm	780 kg
(Model)-03	120 Tons	4 HP	450×450 mm	0–150 ℃	1090×1010×1450 mm	880 kg
(Model)-03	120 Tons	4 HP	500×600 mm	0–150 ℃	1290×920×1520 mm	1350 kg
(Model)-03	130 Tons	4 HP	450×450 mm	0–150 ℃	1090×1010×1450 mm	900 kg
(Model)-03	130 Tons	4 HP	500×600 mm	0–150 ℃	1290×920×1520 mm	1400 kg
(Model)-03	180 Tons	4 HP	500×600 mm	0–150 ℃	1310×920×1550 mm	1500 kg
(Model)-03	180 Tons	4 HP	600×750 mm	0–150 ℃	—	1800 kg

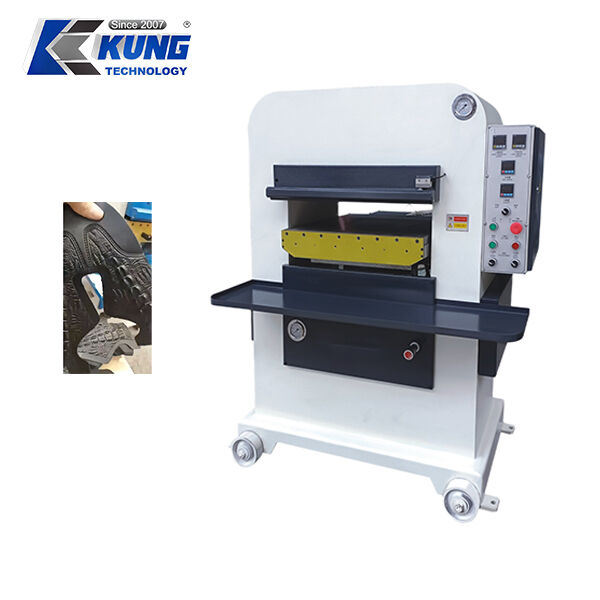

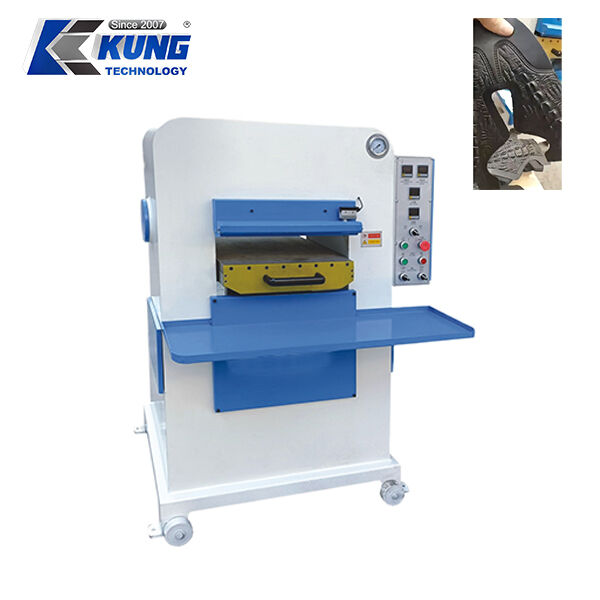

Leather Embossing MachineThis hydraulic leather embossing machine is designed for creating clear,

durable patterns and textures on genuine leather, PU, PVC, and synthetic leather.

It is widely used in shoe uppers, bags, belts, wallets, and leather garment production.

Hydraulic Power System: Delivers stable and uniform pressure (20–250 Tons optional) to ensure

consistent embossing results across the entire working area.

Precision Heating & Control: Features digital temperature and time control (0–150℃ adjustable, ±2℃ accuracy),

supporting different leather materials and pattern depths.

Large Working Area Options: Available in multiple platen sizes (300×350mm to 600×750mm) to meet various production needs.

Safety & Operation: Equipped with safety protection devices and a drawer-type sliding worktable for easy loading/unloading.

Low noise, high efficiency, and long service life.

Customization: Custom molds and machine specifications are available according to customer requirements.
