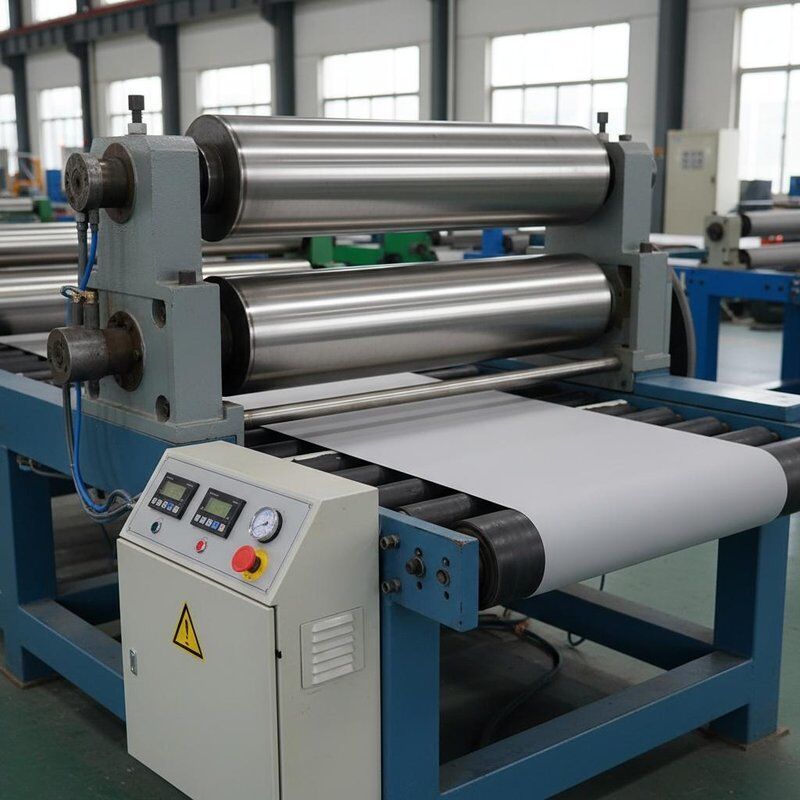

EVA Foam Sheet Calendering Machine For Shoe Insole And Midsole

The EVA Foam Sheet Calendering Machine is a heavy-duty industrial machine designed for producing uniform EVA foam sheets used in shoe insoles, midsoles, and cushioning components. Through precision-controlled heated rollers, raw EVA compound is calendered into sheets of consistent thickness, density, and surface finish.

This machine features a four-roll inverted L-type calender configuration, with individually temperature-controlled rolls (up to 200°C) ensuring optimal material flow and surface quality. The gap between rollers is digitally adjustable from 0.5mm to 50mm, accommodating a wide range of product specifications. A motorized nip adjustment system maintains precise gap control under varying loads.

The integrated cooling section rapidly stabilizes the calendered sheet, preventing post-processing shrinkage and ensuring dimensional accuracy. Production speeds of 5-25m/min can be achieved depending on sheet thickness and material formulation. This machine is the backbone of any EVA shoe material production line.

• Four-roll inverted L-type calender configuration
• Individual roll temperature control up to 200°C
• Digital gap adjustment 0.5-50mm with ±0.02mm precision
• Integrated cooling section for dimensional stability
• Automatic tension control for wrinkle-free output
• PLC control with production data logging
• 1 Year warranty

• Calendering EVA foam sheets for shoe insoles, midsoles, footbeds, heel pads, and cushioning components
• Producing EVA sheets for sports equipment padding, yoga mats, and packaging materials
