Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine

Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine

  • Highlight

    Plastic Full-automatic injection molding machine

    ,

    Air blowing injection molding machine

    ,

    PVC mix injection molding machine

  • Model
    KK-KJ-R10
  • Raw Material
    Pvc
  • Station Number
    24stand
  • Disk Diameter
    3800mm
  • Screw Diameter
    Φ65, Φ45mm
  • Screw Speed
    0-200r/pm
  • Max Injection Capacity
    650,300 Cm3
  • Injection Hydraulic
    12mpa
  • Max Injection Distance
    200mm
  • Mould Clamping Force
    60ton
  • Motor Power
    14.2,14.2,24 Kw/Nm
  • Driver Power
    11,15,22kw
  • Oil Pump
    40,40,63 Cc
  • Limit Of Temperature
    4point
  • Model Size L*W*H
    400*220*260mm
  • Machine Size
    5000*4100*3300mm
  • Machine Weight
    8000kg
  • Place of Origin
    china
  • Brand Name
    KINGKUNG
  • Model Number
    KK-KJ-R10
  • Minimum Order Quantity
    1
  • Price
    36000USD
  • Delivery Time
    45DAY
  • Payment Terms
    Western Union

Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine

Product descriptionFull Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine 0

Materials used: PVC, TPR

Products: Specially used to produce monochrome,Full-automatic plastic PVC mix color air blowing injection molding machine of different heights for men and women. It is the most ideal and efficient injection molding machine for the machine industry.

Features:

1. Simple structure, convenient and safe operation

2. Industrial manual interface, PLC program control, touch screen display, mechanical assistance demoulding, the finished product is more convenient to take out.

3. Monitor the working status throughout the process, set the operating parameters intuitively, and adjust the specific parameters according to different raw materials to ensure the high quality of the product.

4. Low energy consumption design, save energy.

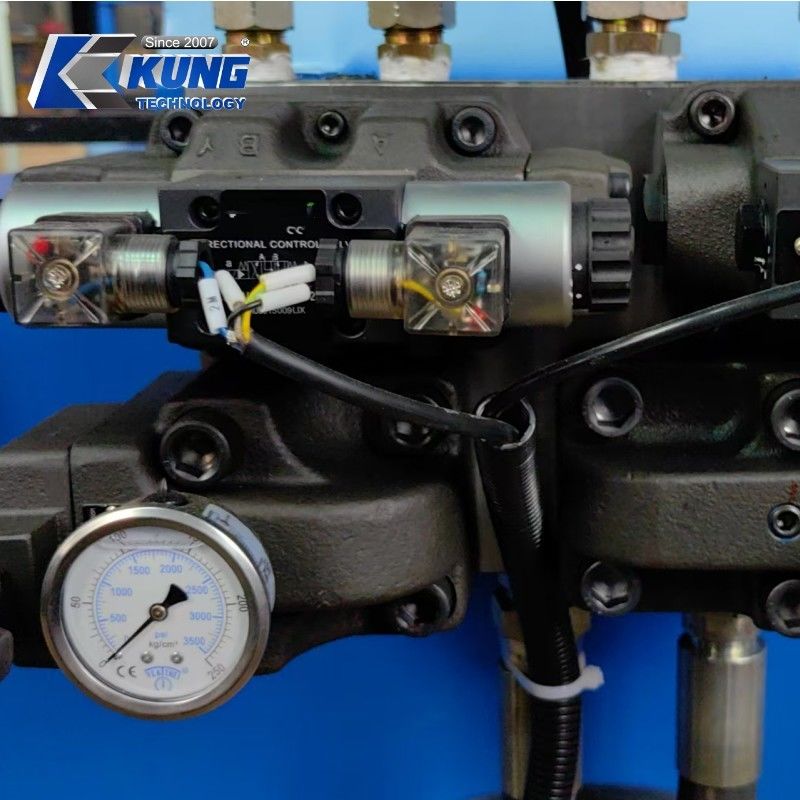

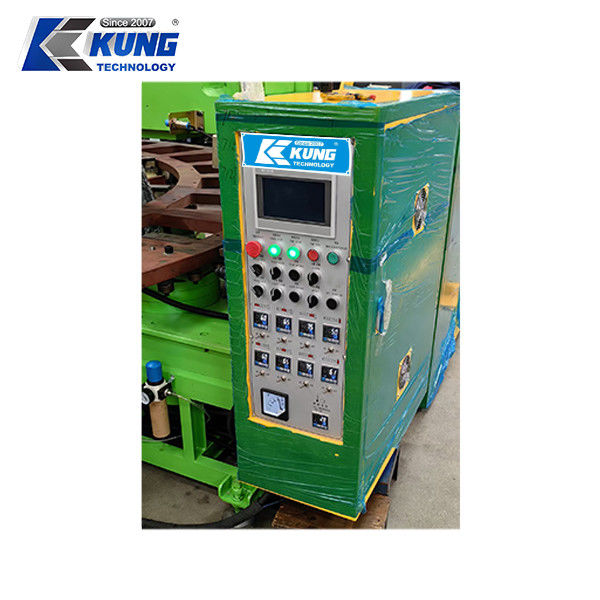

Detailed Photos

Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine 1Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine 2

Product Parameters

Model

kk-KJ-R10

Max Injection capacity

650,300 cm3

Raw materia

pvc

Injection hydraulic

12mpa

station number

24 stand

Max injection distance

200mm

Disk diameter

3800mm

Mould clamping force

60ton

Screw diameter

Φ65, Φ45mm

Motor power

14.2,14.2,24 Kw/Nm

Screw speed

0-200 r/pm

Driver power

11,15,12kw

Oil pump

40,40,63cc

Limit of temperature

4point

Model size L*W*H

400*220*260mm

Machine size

5000*4100*3300mm

Machine weight

8000kg

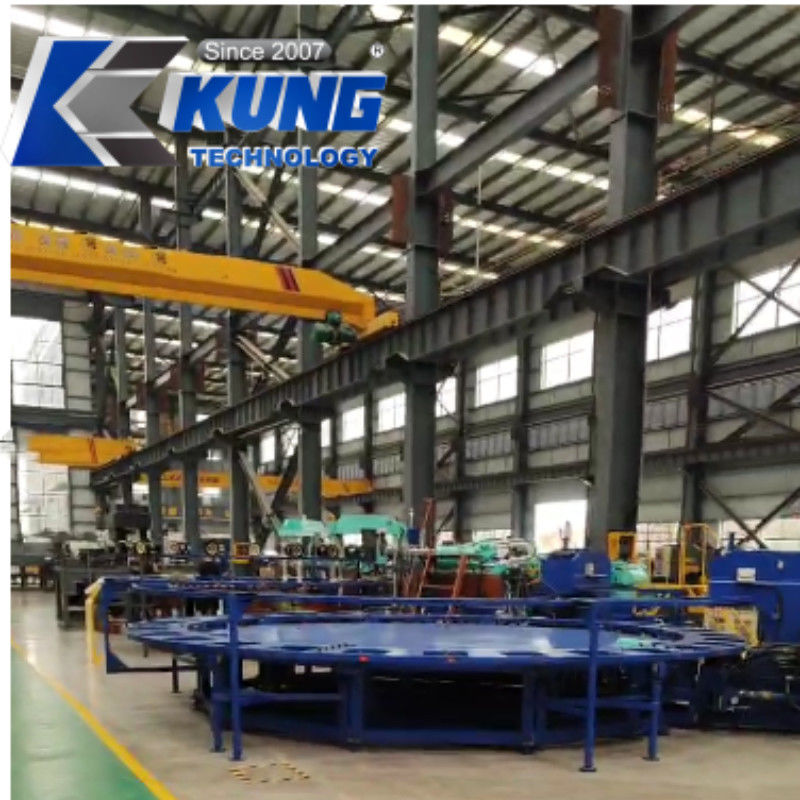

Exhibition picture





Full Automatic Plastic PVC Mix Color Air Blowing Injection Molding Machine 3



Welcome to KINGKUNG
QUANZHOU KINGKUNG E-COMMERCE CO.,LTD has been a leading one-stop exporter of footwear and clothing equipment and accessories in China since its establishment in 2007, with cooperative factories in whole China. KINGKUNG machines, molds and accessories are sold in countries and regions such as the Middle East, South America, South Asia, Africa and Europe. KINGKUNG's good product quality and professional, personalized and all-round service quality have won unanimous praise and trust from customers at home and abroad.
KINGKUNG always follows international trade practices, adheres to the service concept of "KINGKUNG - create value for you!", adheres to the business philosophy of "honoring contracts, keeping promises, quality service, mutual benefit and win-win", and closely connects the domestic and international markets through trade ties. Continuously expand and develop the company's import and export business scope, based on China, serving the world!
What We Do
We specialize in providing customers with one-stop solution for shoe making.
1. Shoe making machine (EVA,PVC, TR, PU, TPU...)
2. Shoe sole mould(EVA,TPU, PCU, TPR,PU...)
3. Shoes, outsole and uppers
4. Shoe material( Mesh, Fabric, PVC/PU leather...)
5. Shoe accessories
6. All kinds of shoe chemicals and so on...
