Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine

Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine

  • High Light

    TPU Rain Boot Moulding Machine

    ,

    TPU Injection Machine

    ,

    Rain Boot PVC Injection Machine

  • Number Of Work Station
    10/12 Stations
  • Productivity Per Hour
    120-220 Pairs
  • Screw Diameter
    060/055/050mm
  • Max.injection Volume
    650/550/450cm³
  • Max.injection Pressure
    35tons
  • Screw Rotation Speed
    0-140r.p.m
  • Mould Clamping Force
    120+50tons
  • Mould Space(LxWxH)
    730x250x210mm
  • Motor
    15kw
  • Heating Bands Power
    6kw
  • Machine Dimension(LxWxH)
    6x2.4x2.3m
  • Weight(Approximate)
    6.5tons
  • Place of Origin
    China
  • Brand Name
    KINGKUNG
  • Model Number
    KK-AU-YF-A01
  • Minimum Order Quantity
    1set
  • Price
    USD+30000-45000+Set
  • Packaging Details
    20GP
  • Delivery Time
    30 work day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1+Set+per month

Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine

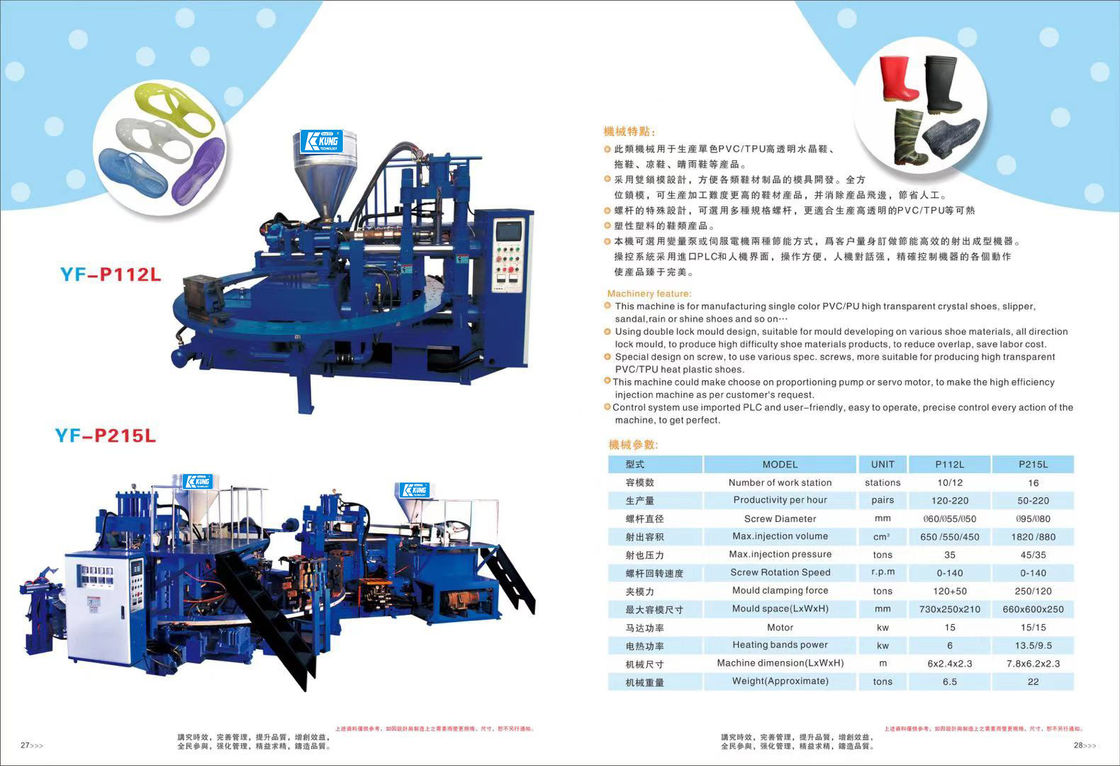

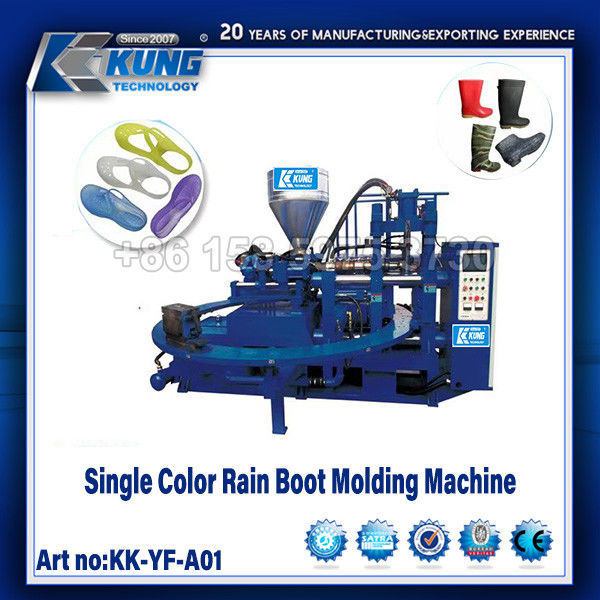

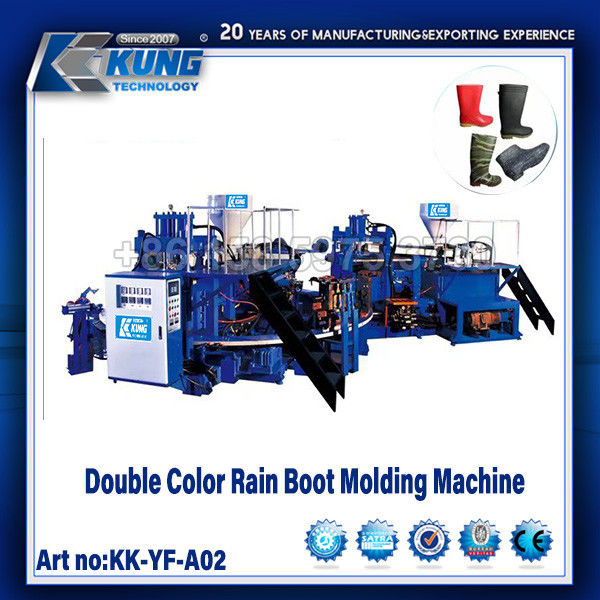

Product picture:



Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine 0Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine 1Single / Double Color Rain Boot Moulding Machine PVC / TPU Injection Machine 2

Features:
This machine is for manufacturing single color PVC/PU high transparent crystal shoes, slipper,
sandal,rain or shine shoes and so on…
Using double lock mould design, suitable for mould developing on various shoe materials, all direction
lock mould, to produce high difficulty shoe materials products, to reduce overlap, save labor cost.
Special design on screw, to use various spec. screws, more suitable for producing high transparent
PVC/TPU heat plastic shoes.
This machine could make choose on proportioning pump or servo motor, to make the high efficiency
injection machine as per customer's request.
Control system use imported PLC and user-friendly, easy to operate, precise control every action of the
machine, to get perfect.
