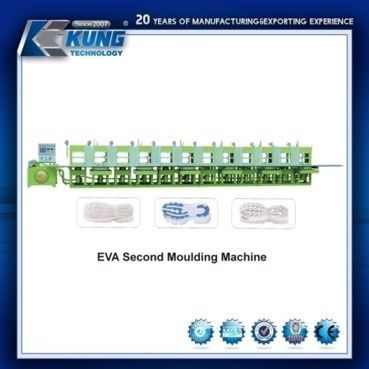

EVA Foaming Shoe Making Machines Multipurpose Thermoplastic Type

EVA Foaming Shoe Making Machines Multipurpose Thermoplastic Type

  • High Light

    EVA Shoe Making Machines

    ,

    Multipurpose Shoe Making Machines

    ,

    Thermoplastic EVA Foaming Machine

  • Condition
    New, New
  • Style
    Rotary
  • Type
    Preform Injection
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Plastic Type
    Thermoplastic
  • Automatic
    Yes
  • Machine Type
    Plastic Injection Machine
  • Mixer Type
    Screw
  • Warranty
    1 Year
  • Product Type
    Plastic
  • Application
    Plastic Products
  • Additional Capabilities
    Other
  • Port
    Xiamen Port
  • Place of Origin
    Fujian, China
  • Brand Name
    KINGKUNG
  • Certification
    CE
  • Model Number
    KK-TZ-12S
  • Price
    $27,500.00 - $29,840.00/sets
  • Packaging Details
    wooden packages
  • Supply Ability
    50 Set/Sets per Month

EVA Foaming Shoe Making Machines Multipurpose Thermoplastic Type

=========

Full-Automatic Rotary Type Of Three-Color Plastic Shoelace Injection Moulding Machine

1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.

4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.

5. We can offer many newly styles for you reference.

6. We also can offer the raw material for you according to your request.



If any new inquiry, pls feel free contact with us!  We will offer you the high quality goods





Features:

 EVA Foaming Shoe Making Machines Multipurpose Thermoplastic Type 0



1.This machine is suitable for inject molding kinds of thermoplastic as PVC ,TPU ,TR of sinle or multi color shoelace and other daily plastic goods.





2.Specially designed screw speacially suitable for produce kinds of PVC crystal solelace,the product transparency is good like galss ,has no shrink or other bad phenomenon





3.the mainframe injection capacity reach 260MM,so this machine can also produce multi color crytal crytal sole and other thermoplastic sole.





4.the rational injection capacity configure ,so the total power is low ,save energy.





5.use a crystal touch screen ,PLC auto control,automatically detectable ,easily and satety operated.













Item

Unit

HJ-XD306B

Work station

station

6

Output

pair/hour

200-500

Screw diameter

mm

42/30/30

Screw length duameter ratio

L/D

24:1

Max injection volume

cm³

260/105/105

Max injection pressure

Mpa

12

Clamping force

Ton

70

Mould space(H)

MM

150

Power of mator

Kw

7.5/7.5

Heating power

Kw

9

Machine dimension

M

5x1.8x1.8

Matchine weight

Ton

8.5









Our machine factory pic:



EVA Foaming Shoe Making Machines Multipurpose Thermoplastic Type 1







If any new inquiry, pls feel free contact with us! We will reply you asap! Thank you very much!
